#include <TopoBase.h>

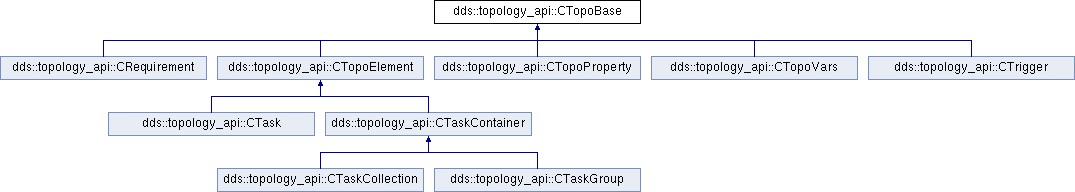

Inheritance diagram for dds::topology_api::CTopoBase:

Public Member Functions
void	setId (const std::string &_id)
	Modifiers. More...

void	setParent (CTopoBase *_parent)

std::string	getId () const
	Accessors. More...

ETopoType	getType () const

CTopoBase *	getParent () const

std::string	getPath () const
	Return full path to topo element or property. More...

CTopoIndex	getIndex () const
	Return index of topo element or property. More...

virtual void	initFromPropertyTree (const std::string &_name, const boost::property_tree::ptree &_pt)=0
	Initialize object with data from property tree. More...

virtual std::string	toString () const
	Returns string representation of an object. More...

Static Public Member Functions
static const boost::property_tree::ptree &	findElement (ETopoType _type, const std::string &_name, const boost::property_tree::ptree &_pt)
	Helper function to find element in property tree by type and name. More...

Protected Member Functions
	CTopoBase ()
	Constructor. More...

virtual	~CTopoBase ()
	Destructor. More...

void	setType (ETopoType _type)

Friends
std::ostream &	operator<< (std::ostream &_strm, const CTopoBase &_element)
	Operator << for convenient output to ostream. More...

Constructor & Destructor Documentation

◆ CTopoBase()

CTopoBase::CTopoBase ( )

protected

Constructor.

◆ ~CTopoBase()

CTopoBase::~CTopoBase ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ findElement()

const ptree & CTopoBase::findElement	(	ETopoType	_type,
		const std::string &	_name,
		const boost::property_tree::ptree &	_pt
	)

static

Helper function to find element in property tree by type and name.

Parameters

[in]	_type	Type of the topo element we are looking for.
[in]	_name	Name of element we are looking for.
[in]	_pt	Property tree.

Returns: Property tree with root node pointing to found element.

Exceptions

logic_error if element was not found.

Note: This function does not catch exceptions from property tree.

◆ getId()

string CTopoBase::getId ( ) const

Accessors.

◆ getIndex()

CTopoIndex CTopoBase::getIndex ( ) const

Return index of topo element or property.

◆ getParent()

CTopoBase * CTopoBase::getParent ( ) const

◆ getPath()

string CTopoBase::getPath ( ) const

Return full path to topo element or property.

◆ getType()

ETopoType CTopoBase::getType ( ) const

◆ initFromPropertyTree()

virtual void dds::topology_api::CTopoBase::initFromPropertyTree	(	const std::string &	_name,
		const boost::property_tree::ptree &	_pt
	)

pure virtual

Initialize object with data from property tree.

Parameters

[in]	_name	Name of the object as in input file.
[in]	_pt	Property tree starting from root.

Implemented in dds::topology_api::CTask, dds::topology_api::CTrigger, dds::topology_api::CTopoProperty, dds::topology_api::CRequirement, dds::topology_api::CTaskCollection, dds::topology_api::CTaskGroup, and dds::topology_api::CTopoVars.

◆ setId()

void CTopoBase::setId ( const std::string & _id )

Modifiers.

◆ setParent()

void CTopoBase::setParent ( CTopoBase * _parent )

◆ setType()

void CTopoBase::setType ( ETopoType _type )

protected

◆ toString()

string CTopoBase::toString ( ) const

virtual

Returns string representation of an object.

Returns: String representation of an object.

Reimplemented in dds::topology_api::CTask, dds::topology_api::CTrigger, dds::topology_api::CTopoProperty, dds::topology_api::CRequirement, dds::topology_api::CTaskGroup, dds::topology_api::CTaskContainer, and dds::topology_api::CTopoVars.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	_strm,
		const CTopoBase &	_element
	)

friend

Operator << for convenient output to ostream.

Returns: Insertion stream in order to be able to call a succession of insertion operations.

The documentation for this class was generated from the following files:
